How to Create Alternative-Specific Choice Model Designs in Q

Introduction

In a standard choice experiment, respondents are presented with alternatives that have a common set of attributes. Alternative-specific designs relax this requirement and are designed to handle situations where alternatives are described by different qualities. Instead of every alternative having the same attributes, each alternative can have its own attributes.

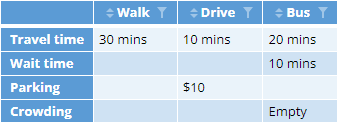

For example:

Note that the attributes are different for each alternative. Drive has a Parking attribute that is not shown for Walk and Bus. Alternative-specific designs are used in such situations where the attributes that describe some alternatives do not apply to other alternatives. Often this arises with labeled alternatives – where each attribute label is shown exactly once per question. This is in contrast to a standard choice experiment, for instance, choosing between sports drinks where each drink has the same attributes of cost, color, sugar content, and bottle size.

Method

Design Algorithms

There are two approaches to making an alternative-specific design.

1. Random – A simple and fast algorithm. As the name implies, for each question a random level is chosen for every attribute of every alternative.
2. Federov – Named after its inventor, this procedure starts with a random design which is sequentially improved by trying different questions until no more improvement is found. Federov is slower than Random but produces a more balanced design where the number of appearances of each level is more consistent. Technically, the algorithm is optimizing the D-error of the design.

Creating the design in Q

In Q, a choice model design is created by navigating to

• Automate > Browse Online Library > Choice Modeling > Experimental Design.

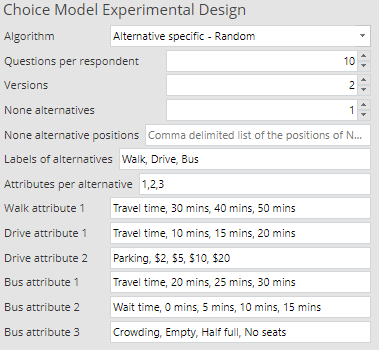

An example of the inputs is shown below. Besides the Algorithm, as already described, the usual choice model inputs of Questions per respondent, Versions, and None alternatives are specified.

• The alternatives are defined by a comma-separated list of labels.
• In Attributes per alternative, another comma-separated list provides the number of attributes of each alternative (in the same order as the alternative labels).
• Each of the following boxes contains a comma-separated list of the attribute label, followed by its levels. For example, the first such box, Walk attribute 1, shows that the label of this attribute is Travel time and its levels are 30 mins, 40 mins, and 50 mins.

• Clicking on the red Calculate button produces the design.

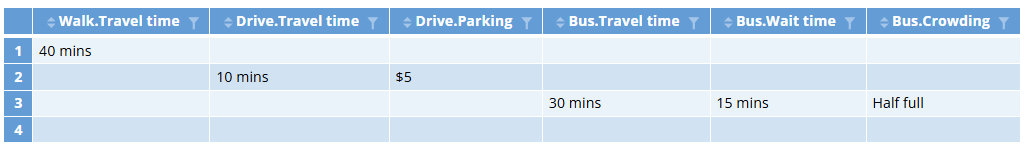

  The table below shows an example of one question. Each row represents an alternative, where the 4th row is the None alternative and so is blank. Attributes that are not part of a certain alternative (e.g. Drive.Travel time in the first row) are also blank.

Maximum candidate questions (Alternative specific - Federov algorithm)

Earlier I mentioned that the Federov algorithm tries different questions in order to optimize the design. The number of possible questions of a design is the product of the number of alternatives there are for each level. For the design above this makes 3 * 3 * 4 * 3 * 4 * 3 = 1,296 potential different questions. Since there are two versions in the design, the number of questions that are examined is multiplied by a factor of 2, i.e., 2592, as the algorithm considers a separate set of candidate questions for each version.

Designs can easily be much larger, with many more alternatives, attributes, levels, and versions. This means that the number of possible questions can run into the billions, which poses a computational problem. Examining such a large number of questions is infeasible in a realistic time frame.

This is where the Maximum candidate questions box is used. Setting Maximum candidate questions limits the number of questions that are examined during the optimization process. This is useful if the Federov algorithm is taking too long. Naturally, this means that the design might not be as optimal as when all questions are considered, but it will certainly be necessary for very large designs unless you are prepared for a very long wait. I suggest starting with 100,000 candidates (which are chosen randomly from all possible questions) and iterating from there depending on how much time you can spend.

Comparison of designs

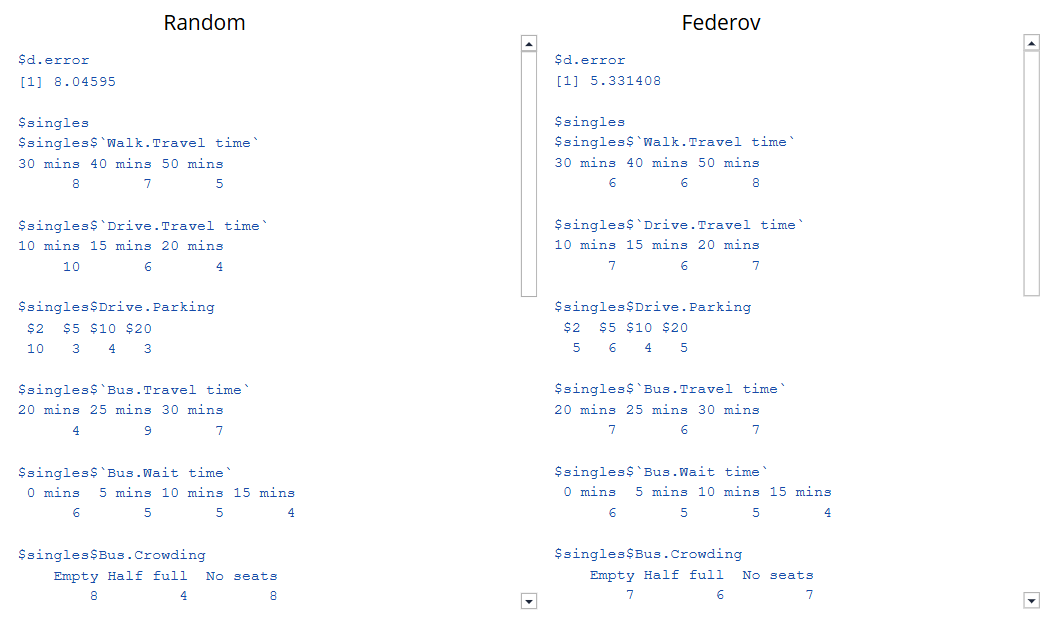

The diagnostic metrics of a design are included with the output. For the Random example design from above, we obtain the following.

• The first value shown is D-error. D-error is a measure that shows how good or bad a design is at extracting information from respondents. A lower D-error indicates a better design. Usually, D-errors are used to compare the quality of designs created by different algorithms. The corresponding value for the Federov algorithm is 5.61.
• The following rows, singles, show tables of the frequency of occurrence of each level. Since this is a random design there are significant fluctuations. For example, in the Crowding attribute of the Bus alternative Half full is shown 11 times but Empty is shown only twice.
• Finally, pairs show tables of the co-occurrence of the levels for each pair attribute of an alternative. These numbers also show a large amount of variation. The same tables for the Federov algorithm are much more balanced.
