Introduction
This article describes how to replace the standard median shown in the Statistics - Below with a median computed on the basis of the ranges in your data.
Requirements
- Q calculates Median values in the standard way, based on the values in the raw data. It is sometimes desirable to calculate the median differently for questions whose categories contain ranges of values. Common examples include questions describing income brackets or age ranges. In these cases it is possible to use the values in the ranges to calculate a grouped median. One such calculation is described here. The calculation is designed to work out the relative position within the bracket where the median lies, based on the proportion of the sample in that bracket. This is a different estimate of the median than that provided by assigning mid-point values to each category, which would simply provide the mid-point value for the category in which the median of the data lies (see Create New Variables - Midpoint Coding and Quantification).
- Create a table with the desired categories shown in the rows. It is best not to include any additional NETs in the table - the rows should describe only those categories which represent unique brackets from which you want to compute medians.
- The table must be a summary table or crosstab and not include a grid question.
Method
1. Select your table.
2. Go to Automate > Custom Rule.
3. Paste the code below into the dialog:
form.setSummary("Grouped medians");
includeWeb("Table JavaScript Utility Functions");
var below_table_exists = belowTableExists();
if (!below_table_exists)
form.ruleNotApplicable("Statistics - Below are not available on this table");
if (below_table.availableStatistics.indexOf("Median") == -1)
form.ruleNotApplicable("the Median is not available on this table");
if (table.availableStatistics.indexOf("%") == -1 && table.availableStatistics.indexOf("Column %") == -1)
form.ruleNotApplicable("there is no appropriate percentage to use");
// Convert a string to a decimal number.
// Does not permit commas within the number
// to avoid ambiguity between US and EU number formats.
function parseDecimalNumberFromString(x) {
let not_allowed_regex = /[^\d\.]/;
if (not_allowed_regex.test(x))
form.ruleNotApplicable("entered numbers must contain digits and decimal points (.) only")
return parseFloat(x);
}
var stat_to_use = (table.availableStatistics.indexOf("Column %") != -1) ? "Column %" : "%";
var values = table.get(stat_to_use);
var medians = below_table.get("Median");
var row_labels = table.rowLabels
var controls = [];
var upper_vals = [];
var lower_vals = [];
var net_rows = table.netRows;
var rows_to_include = [];
var r = 0;
for (var row = 0; row < table.numberRows; row++) {
if (net_rows.indexOf(row) == -1) {
var new_row_label = form.newLabel(row_labels[row] + ":");
var new_lower_label = form.newLabel("Lower value");
var new_lower = form.newTextBox("nl"+r);
var new_upper_label = form.newLabel("Upper value");
var new_upper = form.newTextBox("nr"+r);
new_upper.lineBreakAfter = true;
controls.push(new_row_label, new_lower_label, new_lower, new_upper_label, new_upper);
form.setInputControls(controls);
upper_vals.push(parseDecimalNumberFromString(new_upper.getValue()));
lower_vals.push(parseDecimalNumberFromString(new_lower.getValue()));
rows_to_include.push(row);
r++
}
}
for (var col = 0; col < table.numberColumns; col++) {
var cur_median = NaN;
var cumulative = [];
for (var r = 0; r < rows_to_include.length; r++) {
var row = rows_to_include[r];
var new_cumulative = (r == 0) ? values[row][col] : cumulative[r-1] + values[row][col];
cumulative.push(new_cumulative);
if (new_cumulative > 50) {
var diff = 50 - (r > 0 ? cumulative[r-1] : 0);
var range = upper_vals[r] - lower_vals[r];
var percentage = values[row][col];
cur_median = lower_vals[r] + (diff / percentage) * range;
medians[0][col] = cur_median;
break;
}
}
}
//log(medians);
below_table.set("Median", medians)
4. Press the blue Play button > Close.

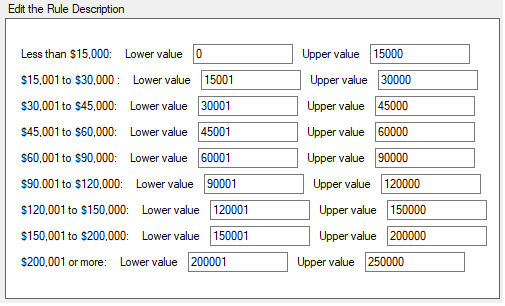

5. Enter the Lower value and Upper value for each category.
Important: If setting values with decimal places, you must use dots (not commas) to specify the value (e.g., 10.50).
6. Press OK.
7. Ensure this rule is placed in the first position on the Rules tab to avoid any conflict with other rules. You can re-position the rule by selecting it and using the Up button.
Note that it is only appropriate to use this calculation when the rows of the table describe mutually-exclusive categories. The values entered, and the resulting calculation, are not used in any statistical testing.
