How to Create a Scatterplot from 2 Tables

  • Updated
Follow
The QScript Plot/Chart - Scatterplot from 2 Tables creates a scatter plot showing the data from two separate tables, where:
  • Each of the tables contains a single column of numbers.
  • The row labels of the tables match exactly in terms of text and case.

These tables need to be created prior to trying to create the scatterplot.

Example

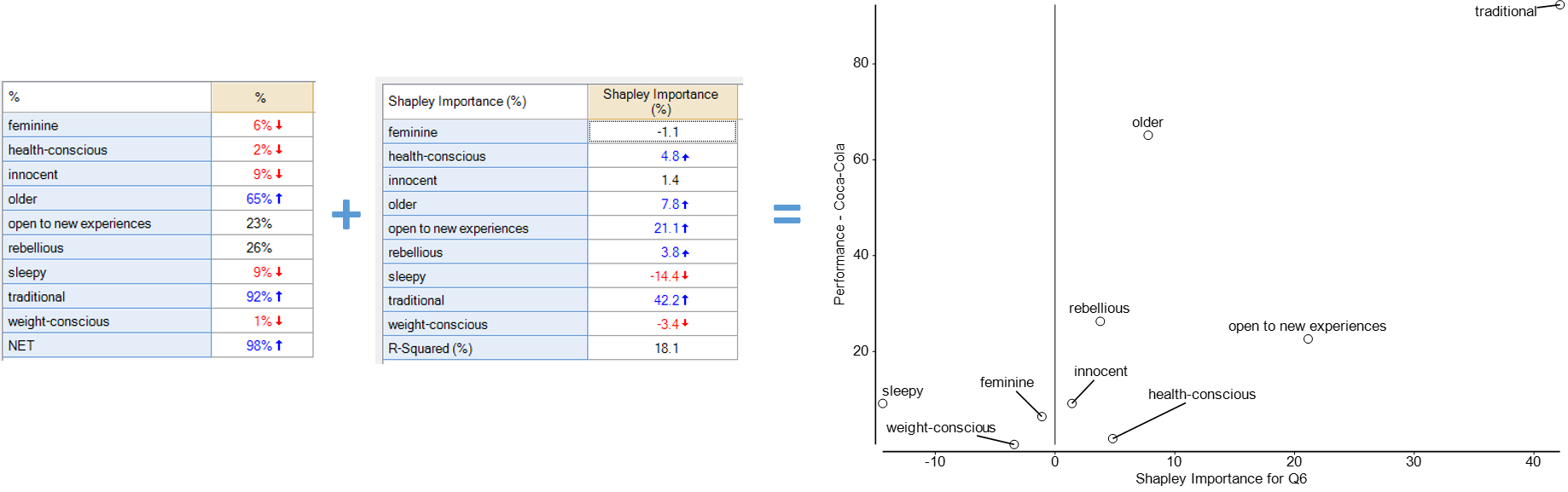

The example below shows a performance-importance plot (sometimes called a quad-map), where the performance is SUMMARY of a Pick Any question, and the importance has been measured using Regression - Driver (Importance) Analysis - Shapley.


Technical details

  • The script requests the user to select two tables. Each table must have a single column, consisting of numbers, and have common row labels. You are notified about row labels that only appear in one of the two tables. A scatterplot is created using the numbers extracted from the common rows.
  • The scatterplot will be created from static data copied from the selected tables. Any subsequent changes to those tables (i.e. data updates, recoding, changing filters and weights) will not be reflected in the scatterplot. The script has to be rerun in order to obtain an updated chart.
  • This QScript requires Q 4.9 or later.

How to apply this QScript

  • Start typing the name of the QScript into the Search features and data box in the top right of the Q window.
  • Click on the QScript when it appears in the QScripts and Rules section of the search results.

OR

  • Select Automate > Browse Online Library.
  • Select this QScript from the list.

Customizing the QScript

This QScript is written in JavaScript and can be customized by copying and modifying the JavaScript.

Customizing QScripts in Q4.11 and more recent versions

  • Start typing the name of the QScript into the Search features and data box in the top right of the Q window.
  • Hover your mouse over the QScript when it appears in the QScripts and Rules section of the search results.
  • Press Edit a Copy (bottom-left corner of the preview).
  • Modify the JavaScript (see QScripts for more detail on this).
  • Either:
    • Run the QScript, by pressing the blue triangle button.
    • Save the QScript and run it at a later time, using Automate > Run QScript (Macro) from File.

Customizing QScripts in older versions

  • Copy the JavaScript shown on this page.
  • Create a new text file, giving it a file extension of .QScript. See here for more information about how to do this.
  • Modify the JavaScript (see QScripts for more detail on this).
  • Run the file using Automate > Run QScript (Macro) from File.
