## Introduction

This article describes how to do a Latent Class Analysis in Q. Latent Class is a statistical technique for grouping together similar observations (i.e., creating segments).

## Requirements

A data set containing the variables that you want to use as inputs to the cluster analysis segmentation.

## Method

- The first step depends on which version of Q you are using:
- Q5.0 and later:
**Create > Segments > Latent Class Analysis** - Older versions of Q:
**Create > Segments**

- Q5.0 and later:
- Select the questions to be used to form the segments in the
**Questions to analyze**dialog box. - If necessary, modify the default options. Note that:
- By default Q will automatically select the number of segments using the
*Bayesian information criterion*. You can alternatively specify a specific number of segments by selecting the**Manual**option. Alternatively, you can select a different information criteria by clicking**Advanced**. - The Question Type of the questions that are analyzed determines how the latent class model is conducted. For example, when analyzing a Pick One - Multi any scale points are ignored and Q treats the data as categorical; if it is converted to a Ranking Q focuses on understanding relativities; if it is converted to Number - Multi Q treats the data as being numeric. Note, a Pick Any question with a Categorical Variable Type vs a Numeric Variable Type will be treated the same in the model.

- By default Q will automatically select the number of segments using the
- If necessary, modify the default options. Note that:
- By default Q uses
**Automatic**to select the number of segments using the*Bayesian information criterion*. By default, the number of segments will be between 1 and 10. You can alternatively specify a specific number of segments by selecting the**Manual**option. Alternatively, you can select a different information criteria by clicking**Advanced**. - The Question Type of the questions that are analyzed determines how the latent class model is conducted. For example, when analyzing a Pick One - Multi any scale points are ignored and Q treats the data as categorical; if it is converted to a Ranking Q focuses on understanding relativities; if it is converted to Number - Multi Q treats the data as being numeric. Note, a Pick Any question with a Categorical Variable Type vs a Numeric Variable Type will be treated the same in the model.

For this example, I used the**Manual**option to select 4 segments.

- By default Q uses
- OPTIONAL: Apply a filter if you want to create a segmentation for a specific subgroup.
- OPTIONAL: Select a weight if you want the input variables weighted.
- Click the
**OK**button.

A new single response variable is added to the bottom of the data set with a date/time stamp in the variable label. This variable contains the segment assigned to each respondent.

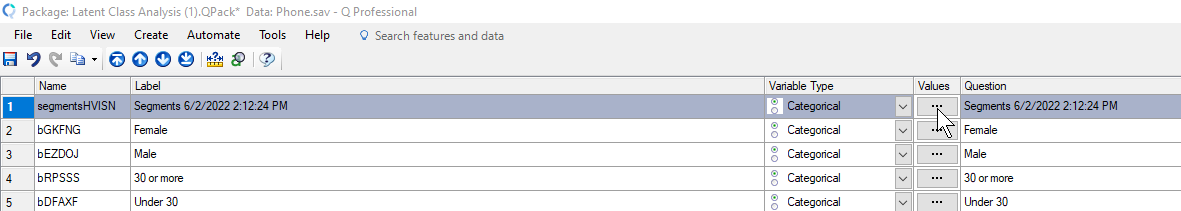

Click the **Variables and Questions** tab to view the new variable:

Create a table using this variable to see the distribution of segment assignments.

## Advanced Options

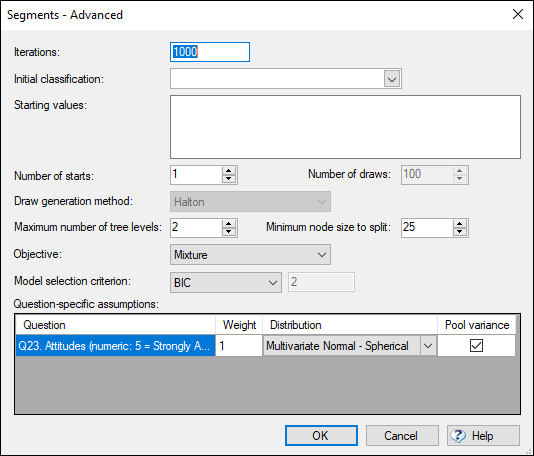

Click the Advanced button for more options:

**Iterations **The number of iterations of the estimation algorithms.

**Initial classification** A question that is used as a starting point for latent class analysis.

**Starting values **Initial values to be used in the first iteration of the algorithm.

**Number of starts **Number of times that the latent class algorithm is run for a given number of classes. Cases are randomly allocated to segments each time (a common seed is used to that you will get the same results each time you run it, unless you change the input data.)

**Number of draws **Number of draws used in computing the simulated likelihood (for **Conjoint **and **Ranking **questions with non-**Finite **distributions).

**Draw generation method **The method used for pseudo-random generation for computation of the simulated likelihood.

**Maximum number of tree levels **The maximum size of the tree (the tree may be smaller if the **Information Criteria** fails to support a split as being appropriate).

**Minimum node size to split** Nodes on the tree (i.e., segments) are not split if their sample size is smaller than this number.

**Objective** This setting can be used to make Q mimic the behavior of other data analysis tools (see also Statistical Model for Latent Class Analysis, Mixed-Mode Tree, and Mixed-Mode Cluster Analysis):

**Mixture**uses a mixture model (e.g., latent class analysis), where units of analysis are assigned to segments probabilistically. This is the standard assumption in modern work on classification and is the setting used as the default in all latent class analysis programs, including Q (when**Form segments by**is set to**splitting by individuals (latent class analysis, cluster analysis, mixture models)**.**Discrete**uses the latent class log-likelihood but assigns units of analysis discretely. For example, if a unit of analysis has a 40% probability of being assigned to class 1 and 30% to class 2 and class 3, the unit of analysis is assigned to class 1 at each stage of the estimation process. This is used in Q when**Form segments by**is set to**splitting by splitting by questions (tree)**.**Clustering**uses the*Classification Likelihood*, where units of analysis are assigned to one-and-only-one segment and segments are assumed to all be of the same size.

**Model selection criterion** Rule used to select the number of classes when **Number of segments per split** is set to **Automatic** (see **Options**). Determines which of the Information Criteria is used. The various information criteria that are used are ordered from the one that will create the biggest trees (the AIC) through to the one that will create the smallest trees (CAIC). There is no clear statistical theory to guide the choice of information criteria.

**Question-specific assumptions**

**Weight**Modifies the contribution of a particular question in determining the final solution by modifying its weight.

**Distribution**See Distribution.

## Technical outputs

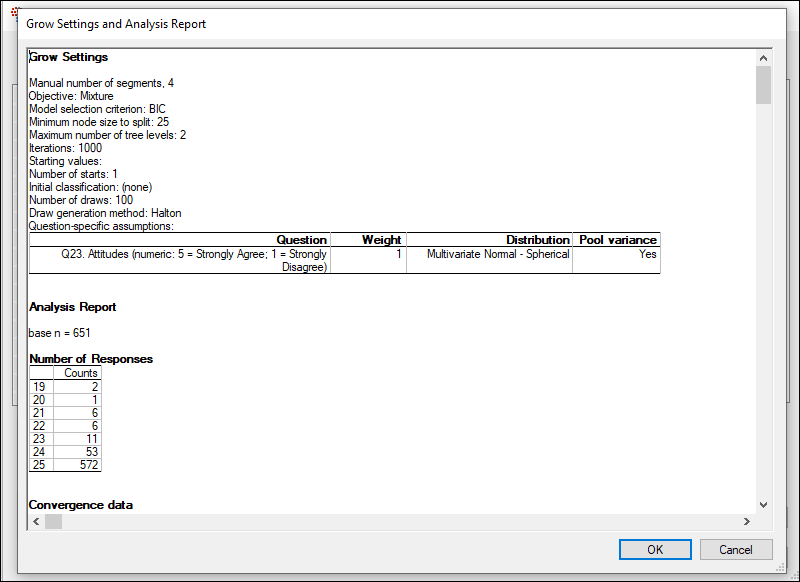

There are two main sets of outputs from a latent class analysis. The main output is the 'tree', which is discussed in the next major section on this page. However, prior to showing you the tree, Q shows you more technical outputs in the **Grow Settings and Analysis Report**. These outputs are discussed here. These outputs can also be obtained by right-clicking on the 'tree' and selecting** View Report**.

### Grow Settings

This shows the various technical assumptions that have been used when conducting the latent class analysis. For example:

Automatic number of segments, 1 - 10 Objective: Mixture Model selection criterion: BIC Minimum node size to split: 25 Maximum number of tree levels: 2 Iterations: 1000 Starting values: Number of starts: 1 Initial classification: (none) Number of draws: 100 Draw generation method: Halton Question-specific assumptions: Question Weight Distribution Pool variance Q23. Attitudes (categories) 1 Finite No

### Number of Responses

This indicates the amount of observations. It can differ by question. See Missing Values in Latent Class Analysis.

### Convergence data

This shows whether or not each model estimated converged. For example, the following output shows that models with 1 through 4 classes all converged. 'Converged' means that the model estimated; if a model does not converge it means that Q was unable to reach the correct solution with the assumptions specified; most commonly increasing the maximum number of **Iterations** in **Advanced** can result in convergence.

1 classes: Converged 2 classes: Converged 3 classes: Converged 4 classes: Converged

### Fit statistics

This is a table showing the diagnostics used to determine the number of classes, as well as some related statistics.

Log-likelihood Parameters BIC R-Squared Entropy Iterations Aggregate -22,708.404 100.000 46,064.660 .000 NaN 2.000 2 classes -21,833.966 201.000 44,970.113 .039 .899 49.000 3 classes -21,389.218 302.000 44,734.945 .058 .904 84.000 4 classes -21,212.304 403.000 45,035.446 .066 .932 301.000 3 class solution has the best (lowest) BIC

The *BIC* is the default information criteria used with latent class analysis. In this case it suggests a 3 class solution. The BIC is a very rough guide to the appropriate number of classes – it is often appropriate to have a different number of classes to that recommended by the BIC. The BIC statistic cannot be used to compare solutions with different data or identified with **Objective** as **Clustering** with solutions identified using other methods.

The BIC takes into account weights in two ways. First, the weights, which are modified to sum to the effective sample size, are reflected in the log-likelihood. Second, the effective sample size is used in the penalty when computing the BIC.

In this example, because the 4 class solution was worse than the 3 class solution Q did not evaluate any larger solutions.

The `R-Squared` statistic s^{}hould not be interpreted in the way that is common with regression models. The more variables in a model, the lower the `R-Squared`. For example, an `R-Squared` of 0.10 could be from a valid and useful model. It is not displayed where numeric variables are used.

`Entropy` is a measure of how accurately respondents can be assigned to the classes. A score of 1 indicates that there is 100% certainty about allocation. With scores below 0.8, it is possible to get non-trivial differences between the outputs shown by the latent class analysis (i.e., on the tree, and in *fit statistics*), and those obtained when crosstabbing the latent class membership variable with the input data. In general, entropy is not so useful when comparing alternative numbers of segments, and its main role is in working out whether there will be inconsistencies between the results on the tree and fit statistics, and those obtained from crosstabs. When entropy is poor, it is usually best to only rely on crosstabs when comparing segmentations.

`Iterations` shows how long the algorithm took to compute. By default the algorithm stops when the number of iterations is 1,000. If this is observed, the number of iterations should be increased. Other than for this purpose, the number of iterations is not a useful diagnostic for latent class analysis.

### Class Sizes, Class Parameters and Individual-level parameter shrinkage

These outputs are generally not useful for model-based clustering applications of latent class analysis, such as the one being described above. Please refer to the MaxDiff Case Study for a discussion of these parameters.

## The 'tree'

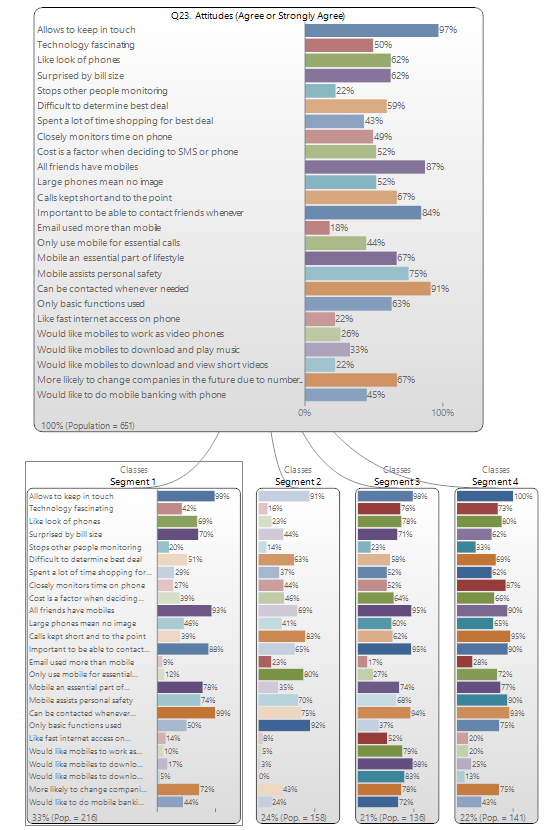

The following 'tree' has been created using `Q23. Attitudes (Agree or Strongly Agree)` in `Phone Tidied.Q`, which is by default installed on your computer at `C:\Program Files\Q\Examples`. As the (upside-down) 'tree' has four 'branches' we can see that four segments have been identified. The blob at the top of the tree shows the results for the total market. Each of the four blobs underneath show the results for different segments, with the size of the segments shown at the bottom.

Note that if you change the **Distribution** settings, and create a model with only a single segment, the results shown in the tree will be different to those shown in the node at the top. The reason for this is that the node on the top shows the results of estimating a single model for the entire sample, whereas the node underneath shows the model for the average person, under the assumption that there is variation in the population, and this variation follows a normal distribution. At an intuitive level it is surprising that these results are different, as in many standard problems in data analysis these two results will be the same. The technical reason that they are not the same is that the underlying models are non-linear, and the two models will only have the same results for linear models. As most people are most familiar with linear models, people tend to get surprised by this seeming contradiction.

## Buttons, Options and Fields

**Questions to analyze **The questions to use to form the classes. Grid questions cannot be selected (you need to first change their Question Type to another type.

**Number of segments per split**

**Automatic**Evaluates segments in the specified range, starting with**Minimum**and finishing when either the*Information Criterion*increases (see**Advanced**), or, the**Maximum**is reached.

**Manual**The specified**Number**of classes are created. When creating a tree, Q uses this setting for each*split*('branch') of the tree. (You can specify the**Maximum number of tree levels**and the**Minimum node size per split**in the**Advanced**options.

## Tree Options

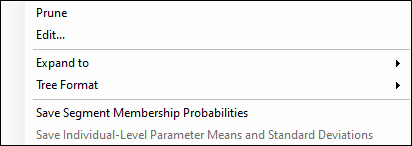

Right-click the tree to get the following menu:

**Prune**: Remove all branches of he tree. This is useful when you just want to chart the analyzed questions without segmenting.**Edit**: Open the Segments dialog and regrow the tree. The Segments dialog will remember the options that were initially used to grow the tree.**Expand to**: gives you four options: Next Level, 1 Level, 2 Levels, All Levels**Tree Format**: allows you to modify the Layout or to Color 1-level Segment Lines. The layout optionjs are Tree (grow down), Web (grow left and right) and Stacked Web (grow right)**Save Segment Membership Probabilities:**saves segment membership probabilities as a Number-Multi question. These are sometimes known as posterior probabilities.**Save Individual-Level Parameter Means and Standard Deviations:**saves individual-level parameter means and standard deviations.

## See Also

How to Do MaxDiff Latent Class Analysis in Q

How to Use Hierarchical Bayes for MaxDiff in Q
